GENELEC 8010A Studio Monitor Black

รายละเอียด

8010A Studio Monitor

Studio Monitor

Technical Specifications

The 8010A squeezes true reference performance and extended frequency response into an extremely compact package.

System Specifications

Frequency Response

74 Hz - 20 kHz (± 2.5 dB)

Low cutoff -6dB
67 Hz

High cutoff -6dB
25 kHz

SPL

Peak SPL
≥105 dB

Maximum peak acoustic output per pair on top of console, at 1 m distance with music material.

Short term max SPL
≥96 dB

Max. short term sine wave acoustic output on axis in half space, averaged from 100 Hz to 3 kHz, at 1m distance.

Long term max SPL
≥91 dB

Maximum long term RMS acoustic output in same conditions with IEC weighted noise (limited by driver unit protection circuit) @ 1m.

Self-generated noise

Self-generated noise
≤5 dB SPL

Self generated noise level in free field at 1m on axis (A-weighted)

Weight

Weight
1.5 kg (3.3 lb)

Dimensions

Height
181 mm (7 1/8 in)

Height with Iso-Pod
195 mm (7 5/8 in)

Width
121 mm (4 3/4 in)

Depth
115 mm (4 1/2 in)

Enclosure

Enclosure material
Die cast aluminium

Enclosure type
Reflex port

Drivers

Bass

Driver type
Cone

Diameter
76 mm (3 in)

Treble

Driver type
Metal dome

Diameter
19 mm (3/4 in)

Directivity

Horizontal directivity

Harmonic distortion

70…400 Hz ≤3 %
> 400 Hz ≤0.5 %

Amplifier Section

Amplifiers

8010A bass amplifier

25 W Class D

8010A treble amplifier

25 W Class D

Mains voltage

100-240 VAC 50/60Hz

Power consumption

ISS Active
≤0.5 W

Idle
≤5 W

Full output
30 W

Signal processing section

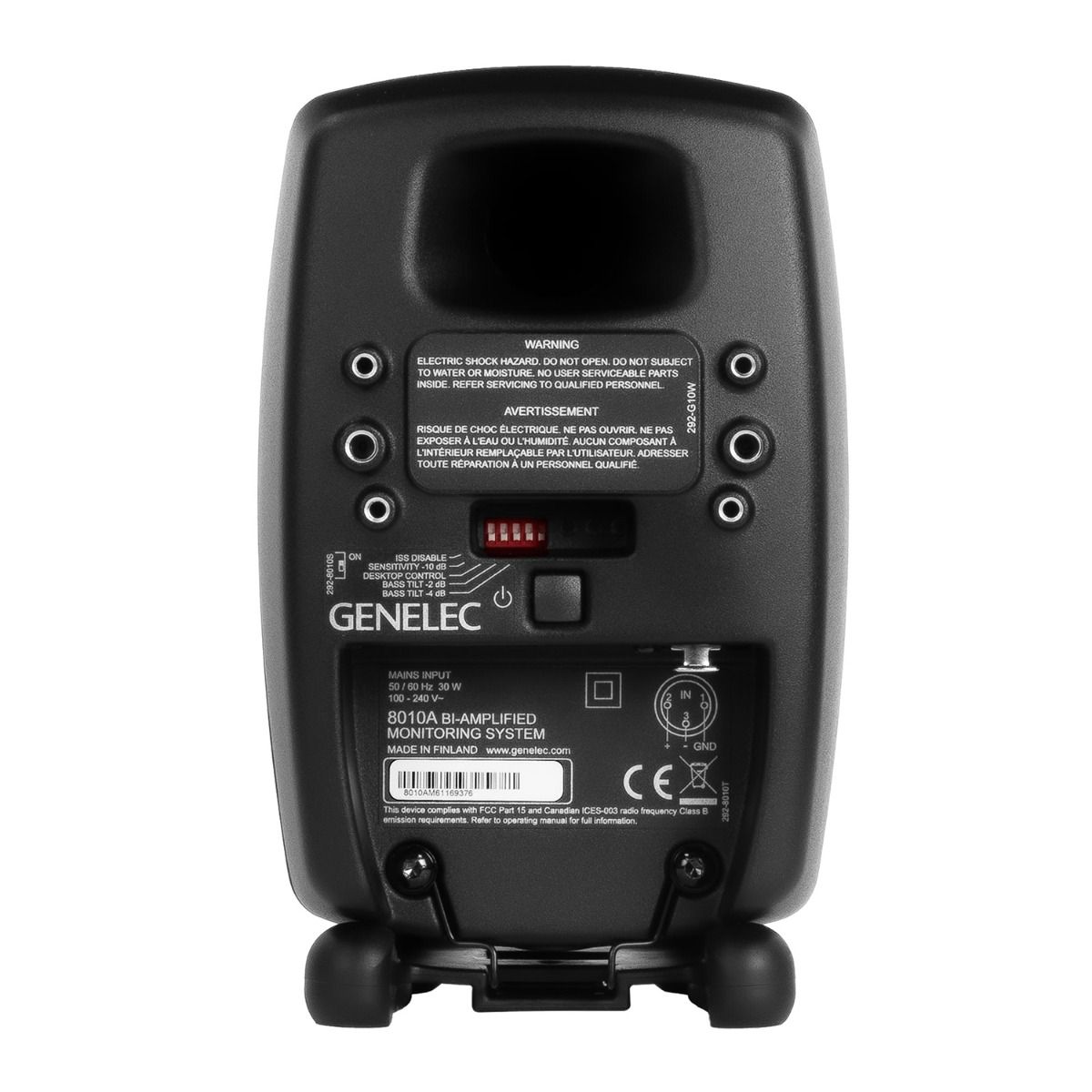

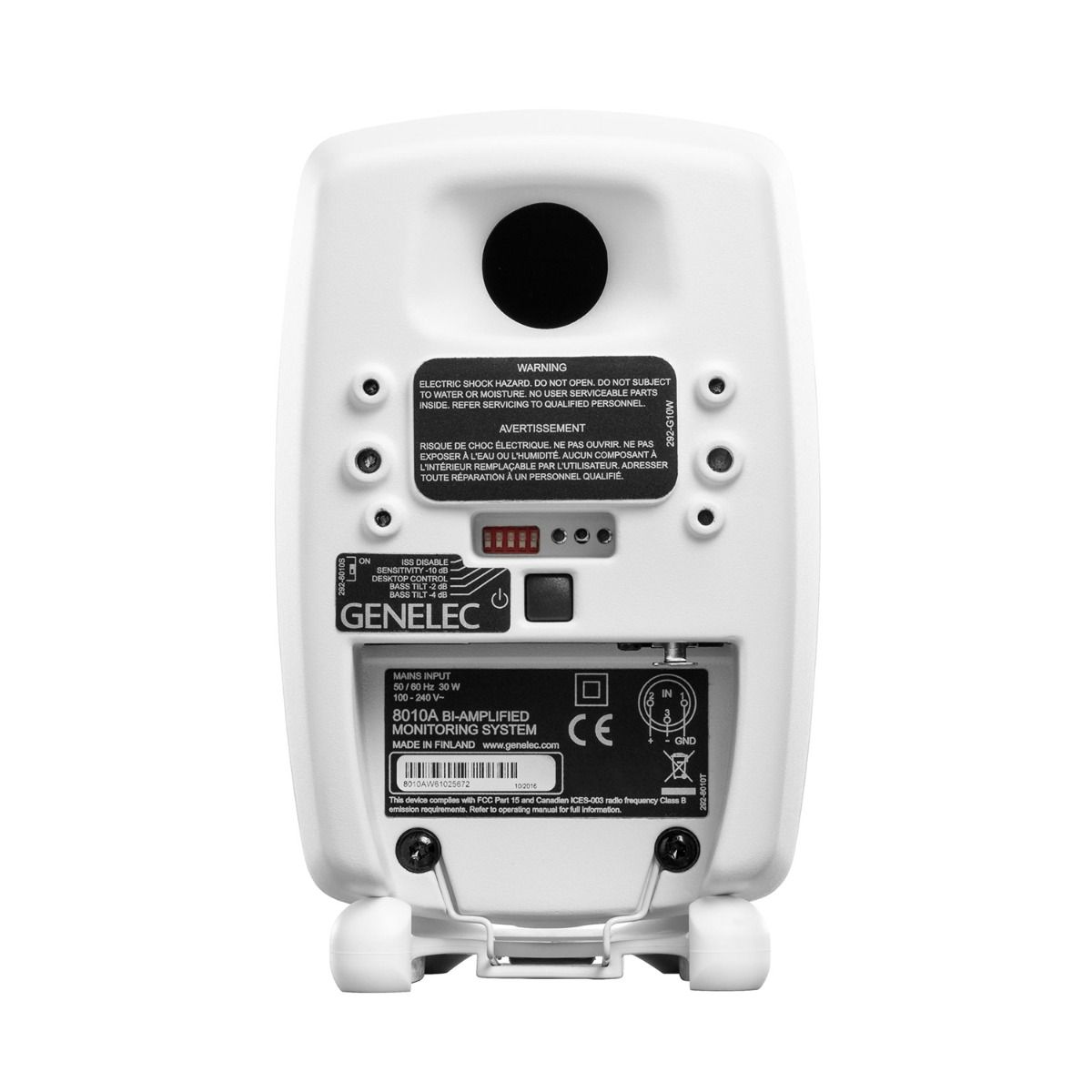

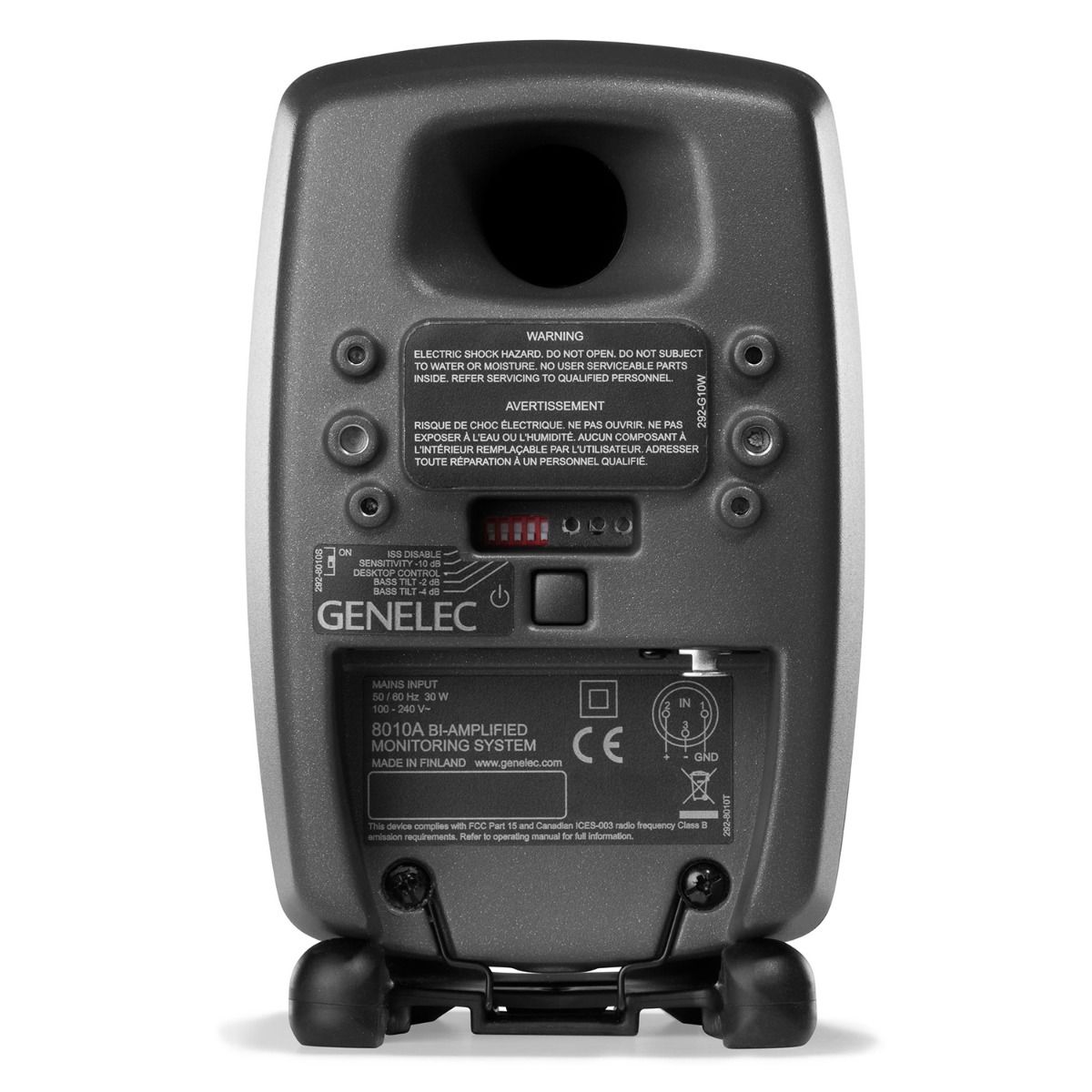

Connectors

Input

XLR female, 7 kOhm.

Crossover

Bass/Treble
3000 Hz

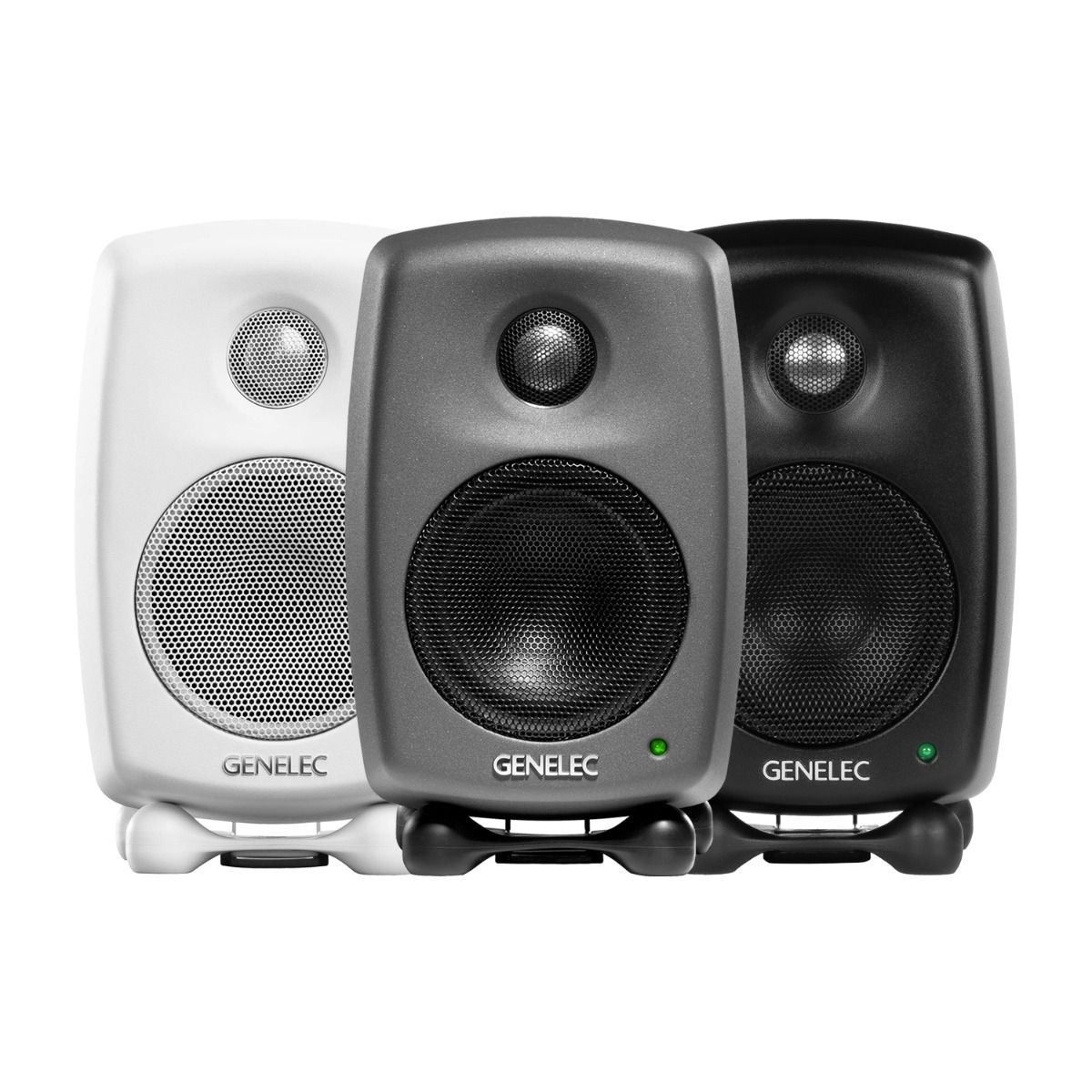

Product Variants

Product codes

Code

Product information

EAN code

CN code

8010AP

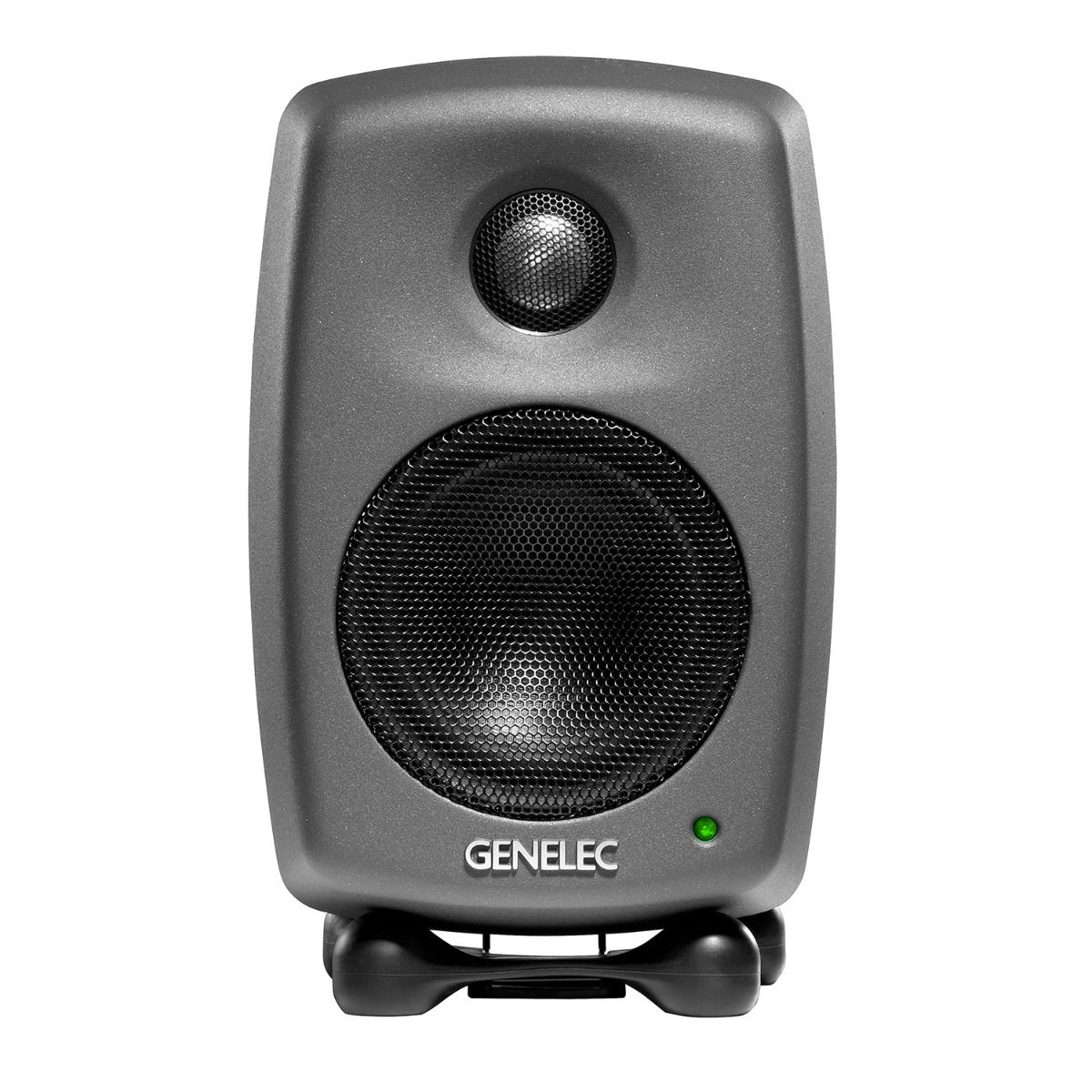

8010A Studio Monitor Dark Grey

8010AW

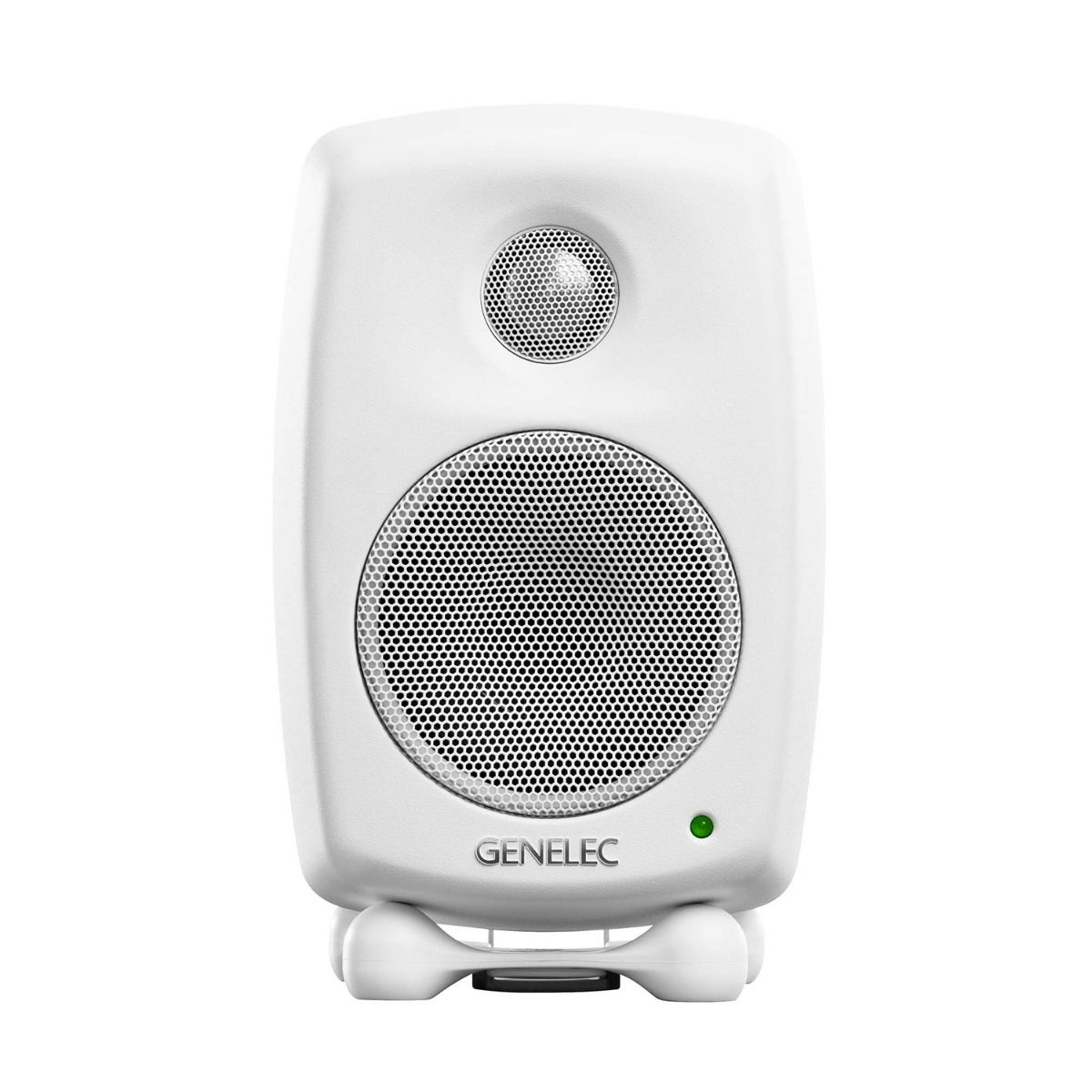

8010A Studio Monitor White

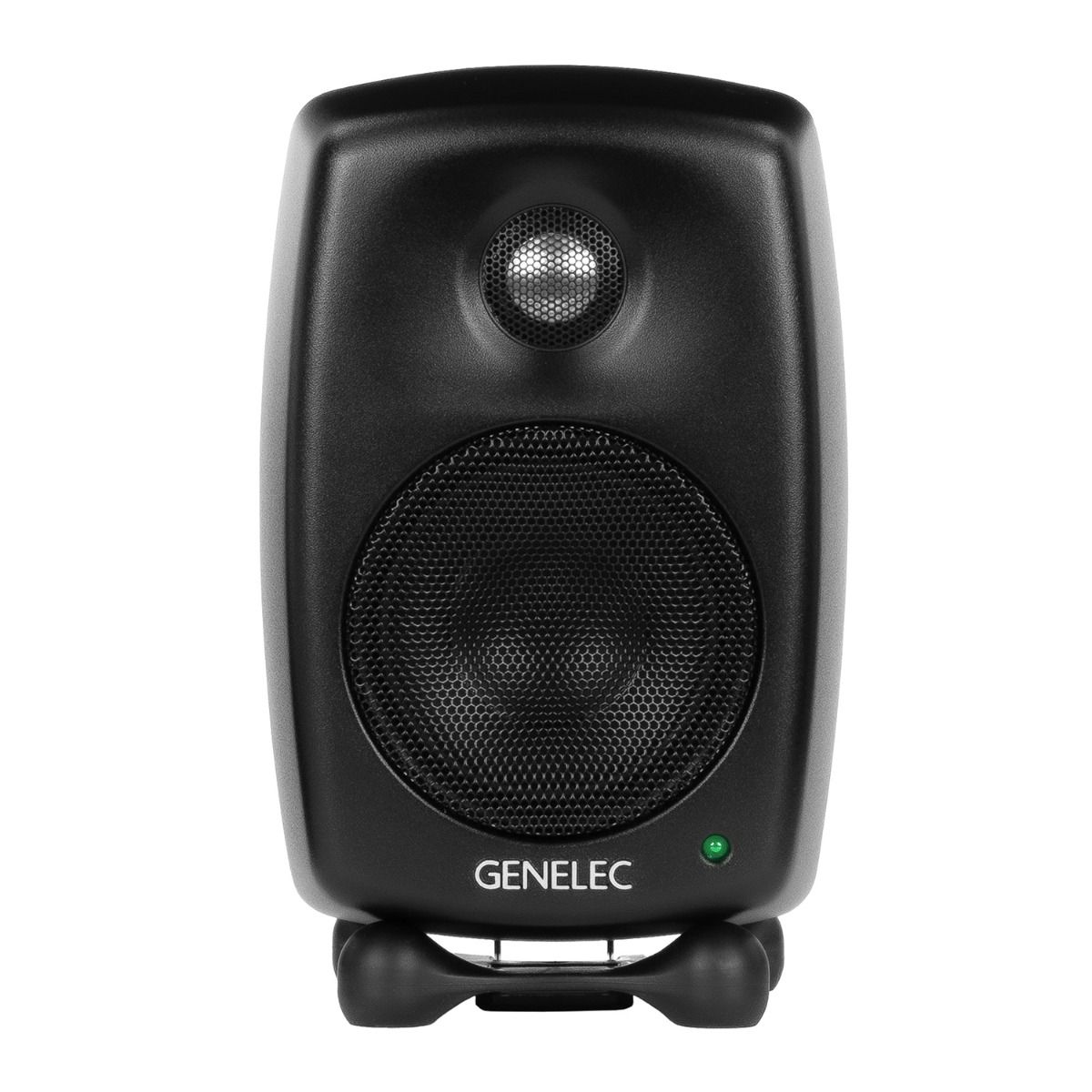

8010A Studio Monitor Black

8010A Studio Monitor RAW
