Warm Audio WA76

฿ 33,500
พร้อมส่ง
SKU
WA-WA76
Discrete Compressor

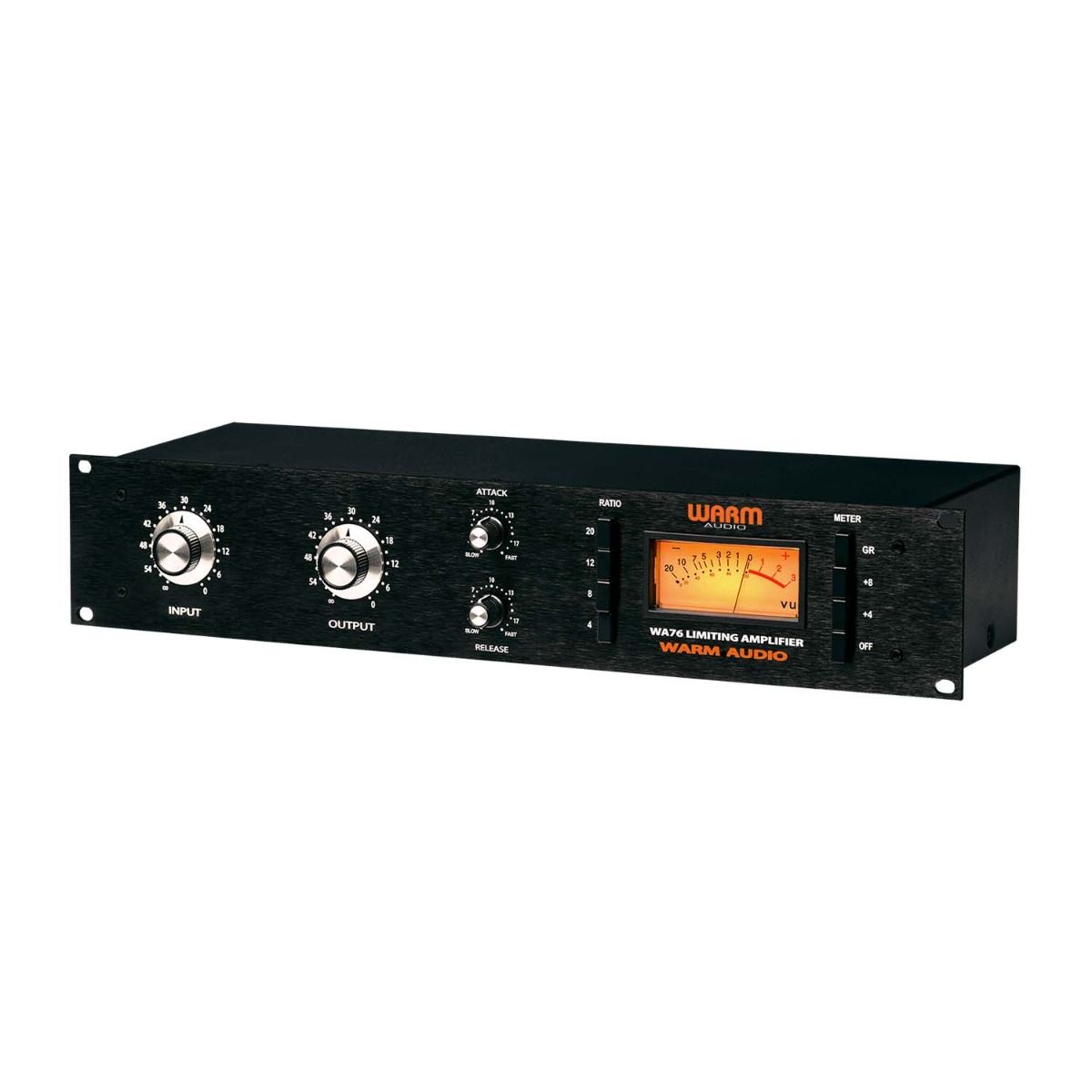

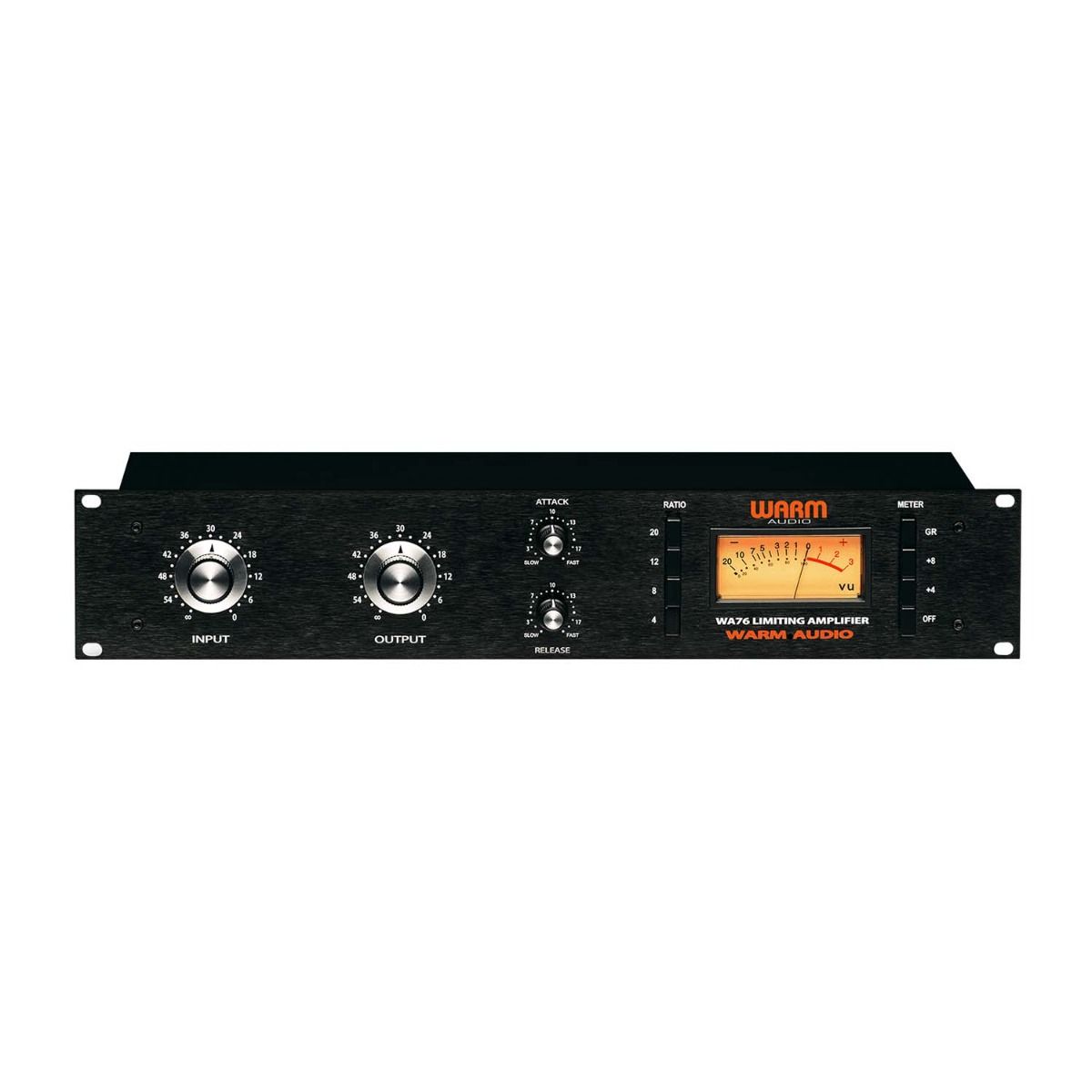

Warm Audio WA76
Warm Audio WA76 Warm Audio WA76 Warm Audio WA76 Warm Audio WA76

Classic Style.

The WA76 Discrete Compressor is a modern reproduction of the Classic '76 Revision D.  The WA76 has a fully discrete signal path and uses the original Reichenbach Engineering's (now CineMag) transformer design. The classic '76 was a major breakthrough in limiter technology, and used on hundreds of hit records since its inception.  Engineers have craved the ultra-fast attack time and trademark sound of the '76 for decades, and now it is finally affordable!

Discrete Compressor - Made Affordable.

Our goal was to make a compressor of this pedigree affordable for the first time, without compromising the quality and design parameters that make this type of compressor so desirable.

ข้อมูลเพิ่มเติม
ข้อมูลจำเพาะ

Specifications

  • Utilizes premium grade input and output CineMag USA Transformers.
  • True to the Classic '76 compressor in design and performance.

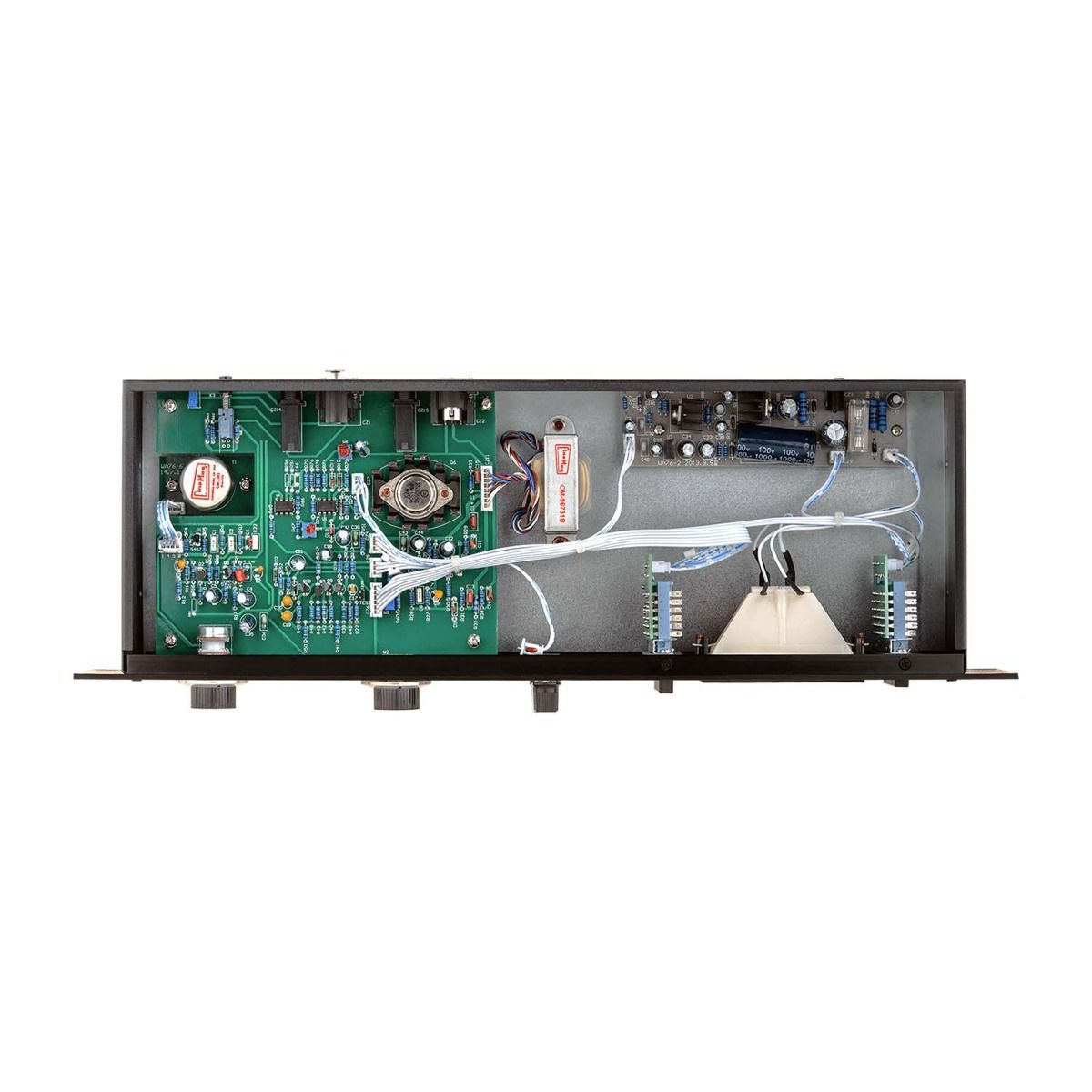

  • Completely discrete signal path.
  • Modeled after the D revision.
  • Supports the famous "all buttons in" ratio setting.
  • Ultra fast attack time.
  • Class A line level output amplifier.
  • Input impedance - 600 ohms, bridges-T control (floating).
  • Frequency Response ± 1 dB 20 Hz to 20kHz.

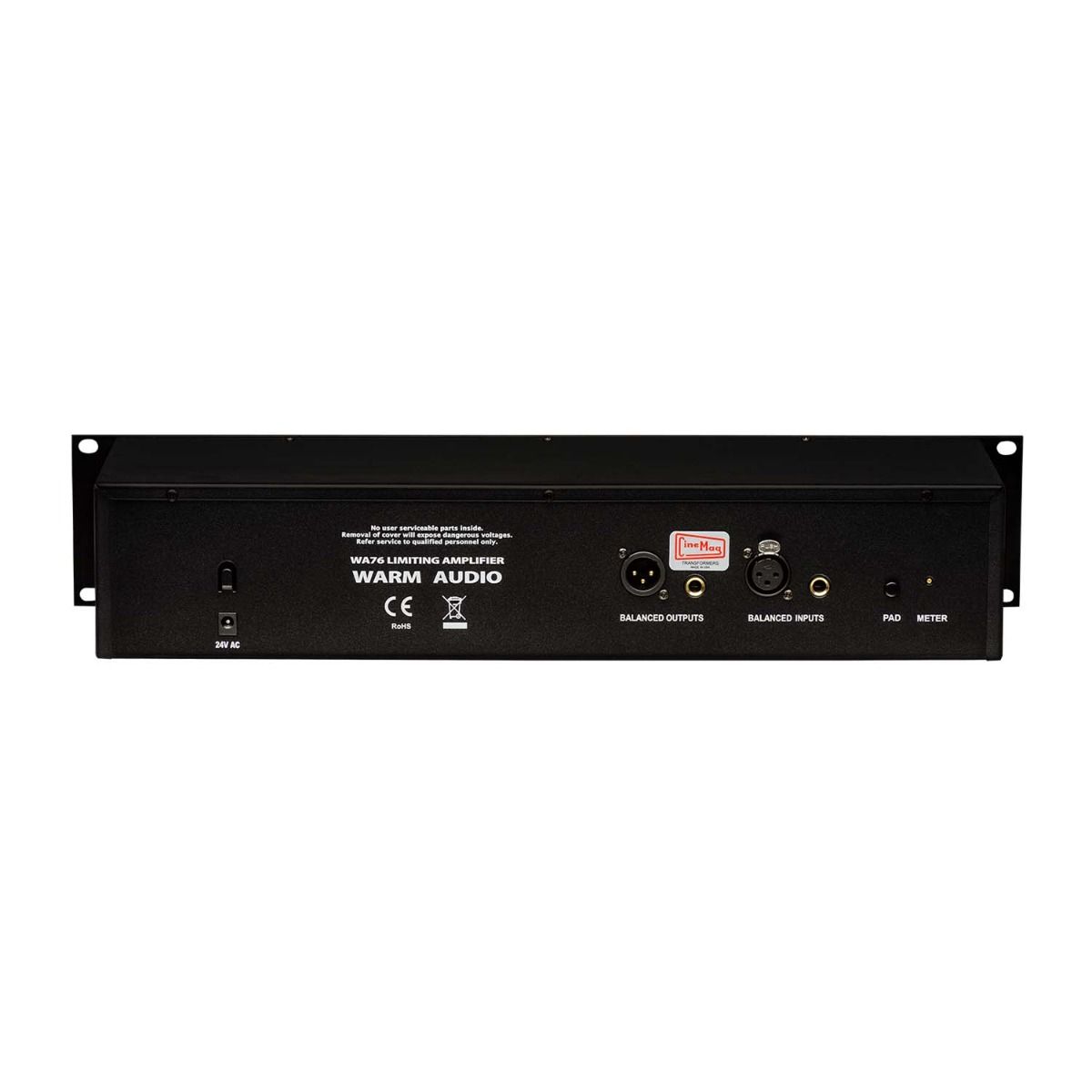

  • XLR and TRS inputs. XLR and TRS outputs.
  • 50db of gain.
  • Less than 0.4% total harmonic distortion from 50 Hz to 20 kHz with limiting.
  • Signal to noise ratio is greater than 74 dB at +25 dBm.
  • EIN -104.1 dbm.
  • Attack time, 20 microseconds to 800 microseconds.
  • Release time, 50 milliseconds to 1 second.
  • Meter provides dB gain reduction and dB output.
  • Internal power supply, external 24v AC power transformer.
  • 19″ Rackmount chassis, 2U.
  • 1-year warranty.
